SVS SB17-Ultra R|Evolution Subwoofer

Listening Impressions

There's an elephant in the room, and I mean that almost literally. Certain frequencies, the lowest ones, simply aren't reproduced faithfully by most loudspeakers. They'll wobble along, giving the impression of bass, but when you sit in the chair you're left wondering: can you feel it? Subterranean frequencies are not just meant to be heard, they're meant to be felt. That's where physics makes its demands, and where a proper subwoofer becomes less an accessory and more an accomplice.

The new SVS SB17-Ultra R|Evolution sits in this role perfectly. It doesn't just extend downward; it stabilizes the entire musical foundation of a system. Without it, bass energy is left at the mercy of room nodes, dips, and cancellations. With it, properly integrated, those gaps are filled and music is transformed from skeletal to complete.

Take Azu Tiwaline's "Nissa." The piece leans on subterranean percussion that can vanish if a system isn't up to the task. With the SB17-Ultra engaged, the sense of air pressure changing in the room was unmistakable, almost tactile. Hok-Man Yim's "Piem of Chinese Drum" from Poems of Thunder offers a different test—complex layers of drum strikes reaching deep into the sub-30Hz territory. The SVS not only delivered the weight but kept the texture intact; you could feel the drum skin's decay rather than just a formless rumble.

Electronic textures fared equally well. Rival Consoles' "Tension in the Cloud" rode on a bed of pulsing low frequencies that the SVS tracked effortlessly, never sounding bloated or detached. Tool's "Chocolate Trip Trip Trip" again proved how essential a sub is to reproducing the psychedelic low-end wash the band intentionally buries in their mix. Without the SVS, it's a curiosity. With it, it becomes an atmosphere.

What impressed me most wasn't just the extension, but the integration. The SB17-Ultra R|Evolution didn't call attention to itself as a separate source; instead, it locked into the main speakers, broadening their stage and letting midrange and treble float freer. The sense of ease returned—no straining, no overreach. Music simply sounded more real, more complete.

Technical Overview

The SB17-Ultra R|Evolution builds on SVS's long reputation for serious engineering in compact sealed enclosures. The driver is a newly designed 17-inch unit, purpose-built to handle massive excursion while maintaining pistonic control. Paired with a Sledge amplifier platform delivering over 2,000 watts of peak power, the sub operates with authority even in large rooms.

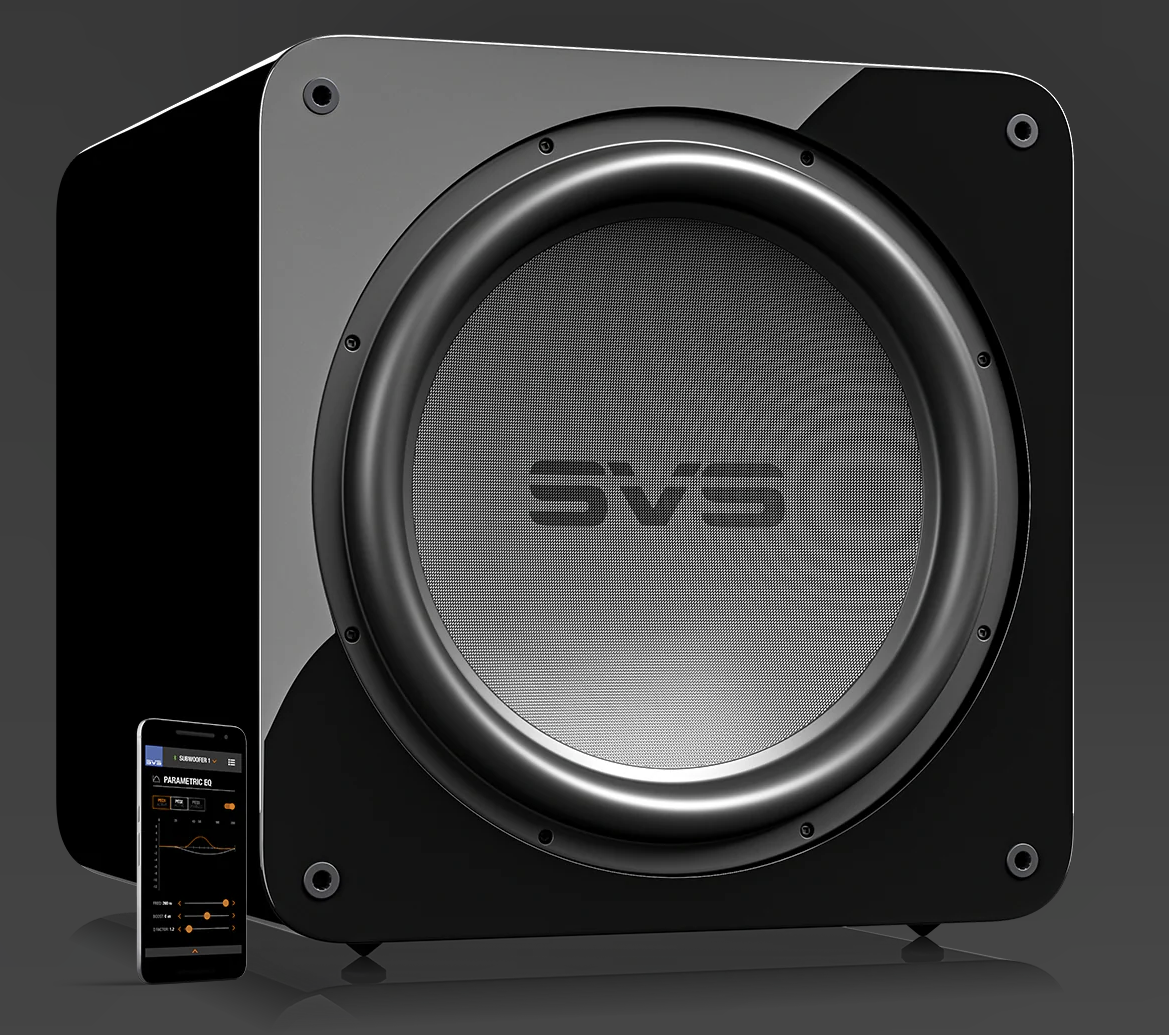

DSP plays a central role here. The onboard processor allows for precise tuning, room integration, and app-based control. Adjusting crossover slopes, phase, and room compensation isn't a chore; it's integral to getting the "trusted accomplice" effect rather than a blunt, overpowering thump in the corner. In practice, this makes placement more forgiving, and integration with demanding speakers far smoother.

Sealed-box design is critical. While ported subs can dig deep, they often carry a sense of overhang or looseness. The sealed alignment here, with the right power and driver, keeps transients tight and responsive. You get depth and slam, but never at the cost of musical timing.

Build quality continues SVS's tradition of tank-like cabinets, with thick bracing to control resonance. Fit and finish are what you'd expect from a flagship: understated but serious. At 100+ pounds, it isn't a piece you casually reposition, but that mass is part of why it behaves so well when pushed hard.

In the end, the SB17-Ultra R|Evolution is more than just a subwoofer. It's the missing piece in systems that already excel but lack the final octave of truth. For music that relies on true low-frequency content, whether the organic thunder of traditional drums or the synthetic pulse of modern electronica; it proves indispensable. And that elephant in the room? With this SVS, it's no longer ignored. It's finally present, felt, and accounted for.

My opinion: don't let the size intimidate you. I believe the large driver like this in a sealed cabinet with DSP control is the way to go here. I am going to be integrating it soon using a new DEQX unit for a large deep dive with room correction, but out of the box it works very well with my panel speakers (Clarisys Auditorium) in my meager room.

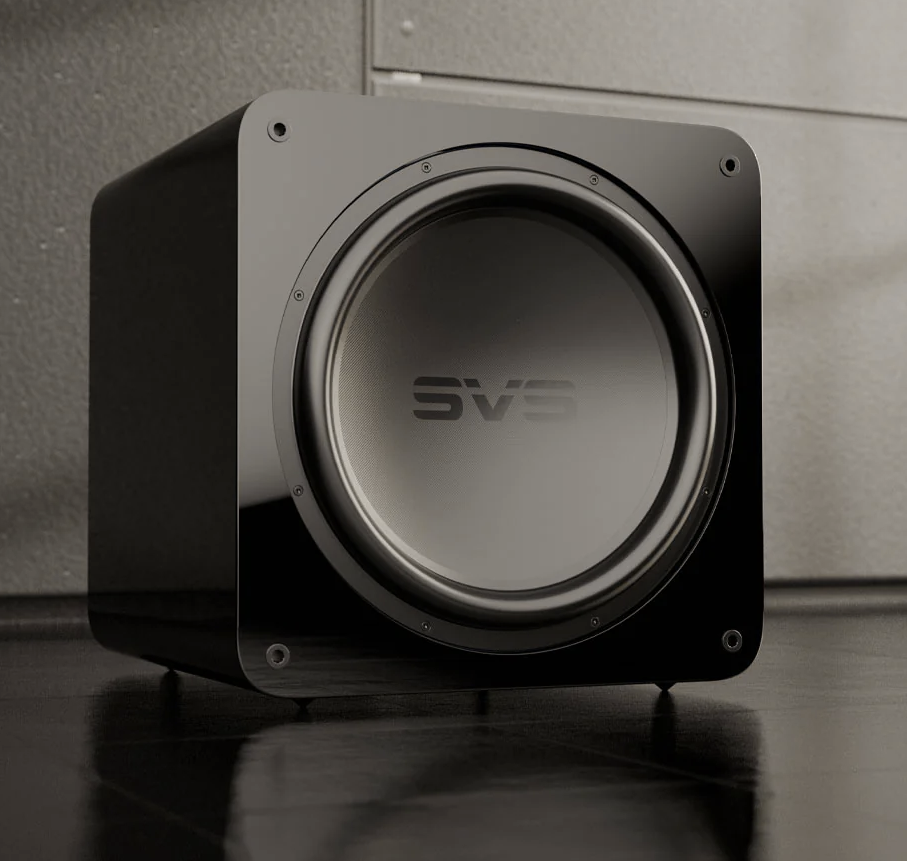

Subwoofer Specifications

Piano Gloss Black and Black Oak Real Wood Veneer finishes
Front Firing 17-inch high-excursion SVS driver
Protective non-resonant extra-thick ABS grille frame with fabric mesh cover to shield driver
Robust Medium Density Fiberboard (MDF) cabinet construction with internal bracing for resonance free performance at highest drive levels
Screw-in Iso-elastomer feet reduce noise artifacts and improve stability
Amplifier Rear Panel OLED and control interface provide fast and direct control of the most important features. Includes "Display Flip" function for viewing upside down from behind
Dimensions (with grille): 20.0" (507mm) H x 19.5" (495mm) W x 21.2" (537mm) D
Dimensions (without grille): 20.0" (507mm) H x 19.5" (495mm) W x 20.3" (516mm) D    
Shipped Dimensions: 24.8" (630mm) H X 24.9" (633mm) W X 29.8" (757mm) D
Weight (unboxed): 124.0lbs (56.25kg)
Shipped Weight: 136.0lbs (61.7kg)

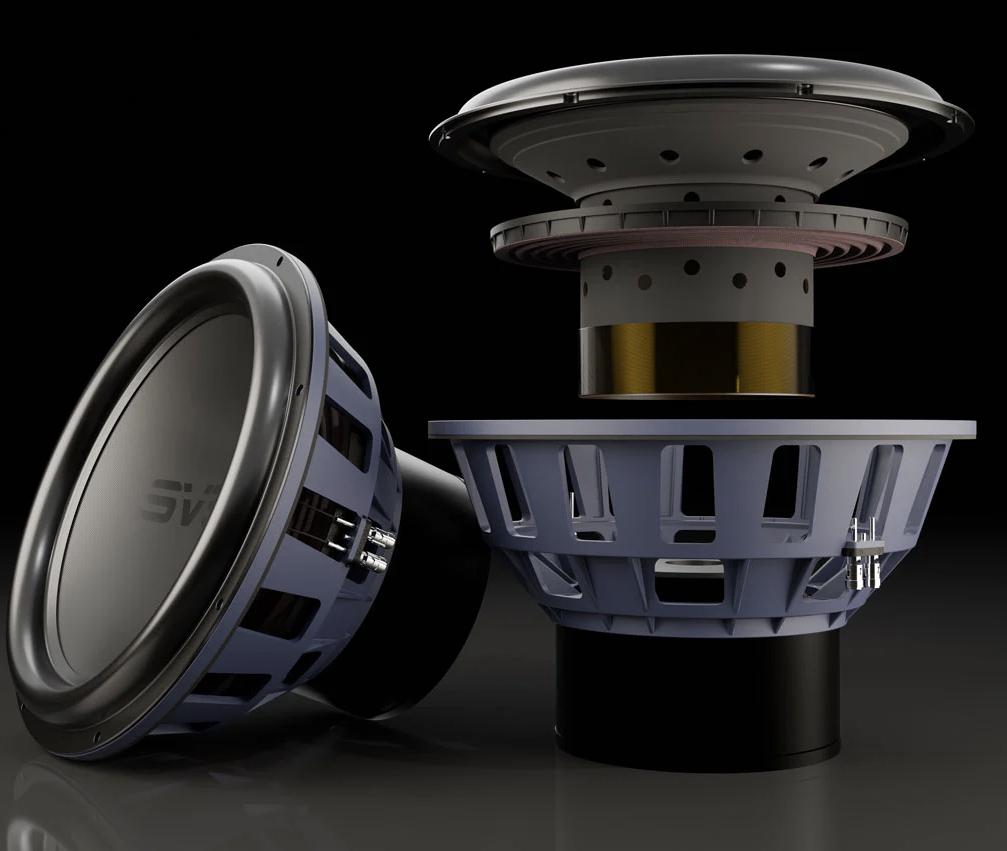

Driver Specifications

Proprietary SVS 17-inch long-throw driver with high-precision tuned overhung motor configuration
63.76lb (28.92kg) pound Woofer with 54.17lb (24.57kg) pounds motor
48.9mm Xmax, 81.78mm Xmech precision aligned excursion
8" diameter Voice Coil with high current 4-layer bifilar copper-clad aluminum wire windings
Dual Voice coil design captures power delivery from dual-mono amplifier outputs into a single voice coil for maximum acoustic output
High Temperature glass-fiber composite former/bobbing
Four-piece high-grade oversized Y35 Ferrite magnet motor produces effortless on-demand driving-force for subtle and over-the-top low frequency sonics
Dual shorting rings reduce gap inductance and lower distortion
Dual 25-strand copper-alloy and Nomex composite high-temperature leads woven through the spider provide a pristine electrical connection from the amplifiers to the voice coils
Precision machined and narrow tolerance low carbon 1010 steel top-plate and oversized T-yoke with integrated pole-piece extension for optimal magnetics and thermal capacity
Dual Nomex extreme excursion linear suspension spiders
Custom injection-molded extreme-excursion catenary SBR rubber surround ensures flawless pistonic motion for pinpoint control and accuracy without distortion at reference drive levels
Premium glass-fiber laminated dustcap and vented composite cone sub-structure with exceptional stiffness-to-mass ratio ensures a light, ridged, and neutral radiating surface about to move massive amounts of air with crisp precision
High-density 17" Powder-coated cast aluminum basket FEA optimized for maximum rigidity, tensile strength, and energy transference
Nickel-plated high-tension spring terminals provide secure connections

Amplifier Specifications

Sledge STA-2800D with 2800 watts RMS continuous power (6000+ watts peak dynamic power)
Dual-mono discrete Class D amplifiers generate endless power from eight massive 60A 200V MOSFETs, resulting in lower EMI and highest eﬃciency
High resolution 295Mhz Analog Devices Audio DSP with double precision 56bit filtering. Over 5x the processing power of previous subwoofers, the most advanced subwoofer processor available for flawless low frequency audio reproduction
Monitors every function of the amplifier ensuring precisely regulated clean voltage is delivered to and from the switch mode power supply and maximum current is pushed to the driver's voice coils
DSP Continuously runs complex power management algorithms and multi-point thermal, voltage, and current monitoring systems to optimize AC voltage delivery to the power supply for continuous peak performance with maximum performance and greatest efficiency
Advanced digital audio processing and DACs (Digital-to-Analog Converters) with 120 dB Signal-to-Noise Ratio provide greater headroom, lower noise, and flawless fidelity
All new Switch Mode Power Supply (SMPS) includes a two-stage 100v-240v full range active Power Factor Correction (PFC) to pre-regulate mains to solid 390V DC regardless of mains voltage or quality. Ensures a consistent 160V rail voltage for dual-mono amplifiers over a wide-range of AC voltages
Onboard AC line conditioner filters and stabilizes incoming voltage, corrects waveform distortions, and eliminates electromagnetic and radio interferences to optimize signal quality
Pioneering convective cooling plate design pulls cool outside air through vents at the bottom of the amplifier plate, flowing over the amplifier components and internal heat sinks, eliminating the need for an external heatsinks
User auto EQ and DSP limiter settings specifically for the 17-Ultra allow the subwoofer to take control of a room and pressurize it with accurate, heart-pounding, acoustically tuned bass

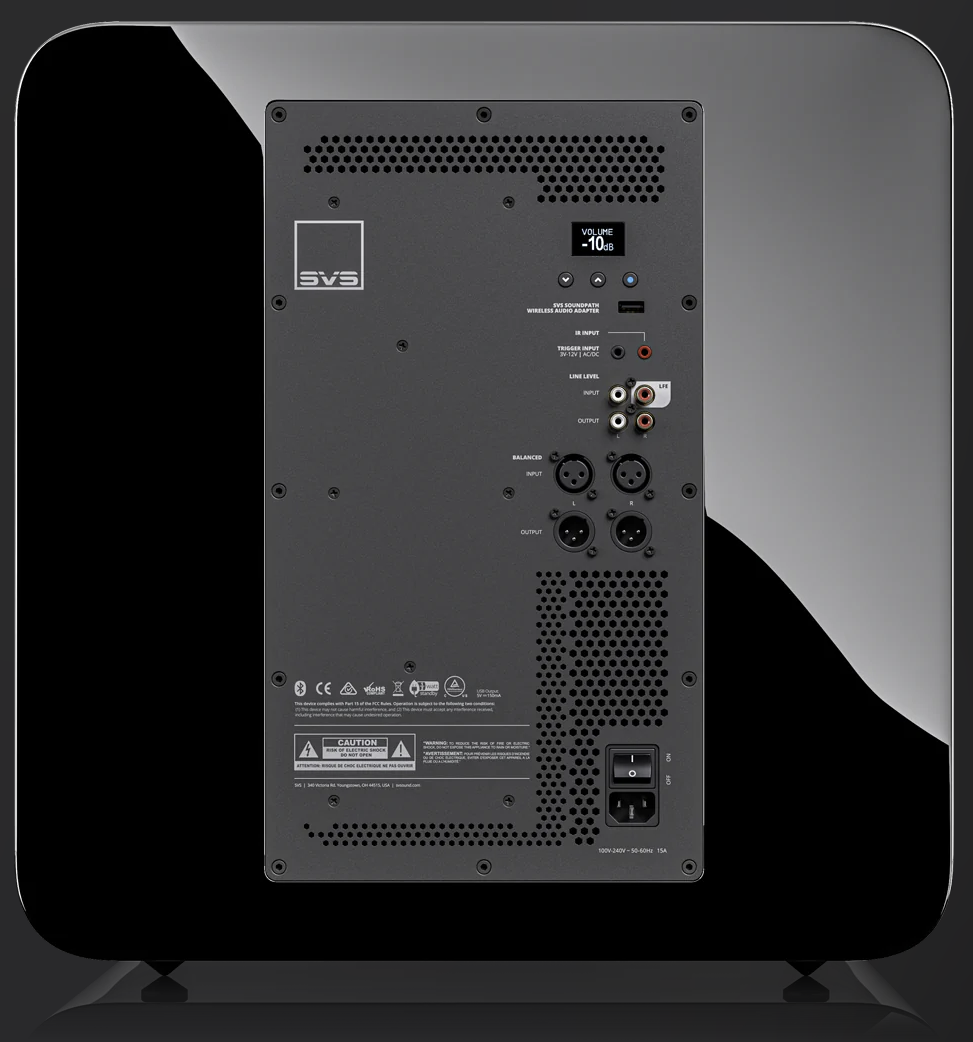

XLR and RCA stereo input/output with ultra-wide input voltage bandwidth compliant with consumer and professional audio applications up to 4V line level input
Unbalanced RCA 10kohm input impedance (compatible with consumer and professional audio up to 4Vrms inputs)
Balanced XLR 14kohm input impedance (compatible with consumer and professional audio up to 14Vrms / +24dBu inputs) OLED and control interface with easy control of the most important features
USB provides power for the SVS SoundPath Wireless Audio Adapter (sold separately) which eliminates the need for a cable run to the subwoofer from the source component.
Auto/On and Trigger options through App for maximum installation convenience (3.5mm trigger Input 3-12V AC/DC)
3.5mm IR input for easy integration with control systems
Green 0.5-watt low standby power consumption
RoHS compliant, lead-free construction, world-wide safety certifications.
