POSITIVE FEEDBACK ONLINE - ISSUE 46



kingrex

HQ-1 Headquarter Desktop headphone amplifier

as reviewed by Robert H. Levi











ROBERT H. LEVI'S SYSTEM

LOUDSPEAKERS
Marten Bird Loudspeakers and REL Stadium III subwoofer

ELECTRONICS
E.A.R. 324 phono preamplifier, E.A.R. 890 amplifiers (ran as monos), E.A.R. 534 stereo amplifier, NuForce Reference 9 SE V2 amplifiers, E.A.R. 912 preamplifier, and an E.A.R. 834L Tube Line Stage.

SOURCES
E.A.R. Disk Master Turntable with two Helius Omega Tonearms, E.A.R. Acute CD player, ModWright Sony 9100 Player with tube power supply, ModWright Sony 9100ES with Signature Truth Modifications, Mod/Bybee Filters and Revelation Cryo Silver Umbilical. Alesis Masterlink 24/96 Recorder/Playback Deck, and the Benchmark DAC 1 revised. Koetsu Rosewood Signature Phono Cartridge. Pioneer DVL 919 LD/DVD Player, and a Marantz DV8400 DVD/SACD/CD player. Magnum Dynalab MD-108 Reference Tuner, Marantz 10B FM Tuner, Day Sequerra Reference FM1 Tuner, and Scott 350B FM Stereo Tuner, AQ 7500 FM Antenna, Stax 7t Electrostatic headphones, Grado Reference 1 headphones, and a Grado headphone amplifier.

CABLES
Kubala-Sosna Elation Interconnects, Speaker Cables, and Power Cords. Kubala-Sosna Emotion, Harmonic Technology CyberLight, Harmonic Technology Magic 2, Dual-Connect interconnects, Dynamic Design THB Nebula, Soundstring, Kimber Select balanced, Kimber TAK phono AG, Kimber Hero balanced and single ended interconnects, and Acoustic Zen Silver Reference II balanced interconnects. Kimber D-60 Digital Interconnects. Kimber Select 3038 Silver, Kubala-Sosna Emotion, and Harmonic Technology Magic Reference Silver speaker cables. Kimber Palladian, Tara RSC and Decade, Tice, Soundstring, and Kubala-Sosna Emotion AC power cords.

ACCESSORIES
Monster Reference 350 Mark II v2 Power Conditioner, World Power Power Wing, Tice Clock, and Audio Prism Quiet Line IIs. Cable Cooker 2.5, Winds Stylus Pressure Gage, Bedini Ultra Clarifier, VPI Record Cleaning Machine 16.5. Audio Magic's Quantum Physics Noise Disrupters.



Lately I have been most interested in headphones and head amplifiers. For dynamic cans, my references are the Benchmark DAC1 and the Grado Headphone Amp. Both are extraordinary and totally satisfactory for private high definition listening. Now folks, you have three choices. Enter the KingRex Headphone Amp from KingRex of Taiwan. It's a bit pricey at $895, but is built to the extreme, gorgeous to look at and sexy to use, and may be used as a limited preamp with one input and one single ended output. Sonically, it's just absolutely fabulous and one of the very best headphone amps I've heard to date.

The innards are the best of the best. From their website:

KingRex HQ-1 is in Class A MOSFET design is general-purpose desktop headphone amplifier.

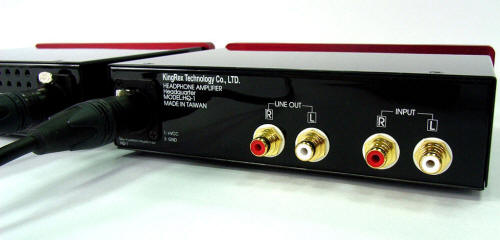

HQ-1 has one input and two outputs which is selectable by front panel push button—one is line-output and another is phone-output.

Gold-plated NEUTRIK 6.35mm headphone jack and gold-plated RCA terminals for provide great contact.

The interior circuitry consists by first stage transistor—Toshiba A970/C2240 for first stage amplification and output stage by Hitachi MOSFET 2SK214.

Featuring Hi Fi grade Panasonic FM capacitor as main filter brings the transparent background and balanced soundstage; input capacitor choose WIMA increase acoustic density; output capacitor choose Vishay for more neutral and delicate details. All material choose for neutral, balance, details, rich musicality, and vivid tuning.

Original ALPS potentiometer for provide the best signal for sonic purity.

Input/output signal path setting use FURUKAWA PCOCC which brings more expansive and warm sound.

Discreet external linear power design—highly current supplied toroidal transformer, LMS1585 constant voltage regulator, total 8pcs Hi-Fi grade Nippon Chemi-Con Electrolytic capacitor in total capacity 25100uF (5 x 2200 uF at AC input stage; 3 x 4,700uF at DC output stage) through NEUTRIK XLR socket all design stream out fully power to fit active dynamic demands.

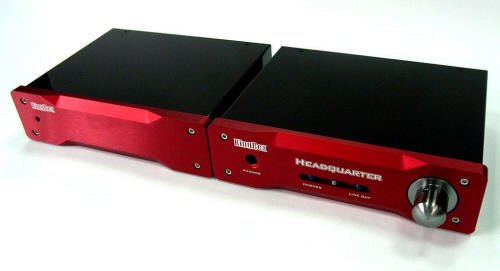

Two style chassis design: Chassis design by piano glass paint steel 180 x 138 x 45mm with aluminum red anodized panel in hair polishing or Sandy blast paint steel 180 x 138 x 45mm with aluminum black anodized panel in hair polishing.

The HQ-1 has amazing definition, mellifluousness, and dynamic energy. With an extended frequency response to 80kHz, this baby is airy to the max. I tried three pairs of cans including the Grado RS-1s, the Beyer DT770s, and Sony's MDRV250s. I used the incredible Kubala-Sosna Elation interconnects ($6000), the revealing Jorma Number 1 interconnects ($4000), and the ultra high value Dynastrand Dynasty interconnects ($439)… each imparted their own musical fingerprints and the HQ-1 changed accordingly.

One thing is for sure, I have never heard a more powerful, super dynamic headphone amp than the KingRex. Plus, with all that wallop you get spectacular ambience and air. I have heard headphone amps powering all brands of cans costing up to $4000. I can't imagine why you'd spend more than $900 after living with the HQ-1. Overall, I heard more dynamic slam with the HQ-1 than with the Grado. I heard more overall definition and ambience than with the Benchmark. That much is clear to me.

Quibbles

You must put 300+ hours on these under load before listening critically. I let them cook for an entire month before reviewing. After 150 hours, I almost returned them to PFO as they just did not sound open or high-end. No worries. At 300 hours, they define open and high-end! They are also are limited to single-ended facilities, so pro fans are out of luck.

As I mentioned earlier, you will want to carefully choose your cabling along with a good power cord. I used the $500 Harmonic Technology Fantasy PC with excellent results. Simply put, the better the ancillaries, the better the definition and overall performance. You should hear the HQ-1 with the Kubala-Sosna Elation interconnects. WOW!

Conclusion

The KingRex HQ-1 is a sonic blockbuster. Sounds as good as your ancillaries and will drive anything in a headphone you might own. And while it needs tons of break-in, it is clearly worth the wait, though I will hesitate to say it completely tops either of my references or is state of the art. Until… there is a half meter balanced cable connecting the two headphone boxes—the power supply with the amplification components. This umbilical will naturally affect the performance of the unit. The stock balanced cord is very neutral and detailed, but lacks warmth and textural cues in the important midband. Every balanced interconnect of high quality I tried in place of the stock cable improved the sound. I ended up using one leg of a one meter Kubala-Sosna Emotion balanced pair of interconnects. The $1500 single cable enhanced the overall performance to a level similar to that of my reference Stax. Meaning that the HQ-1 is now performing way beyond either of my headphone reference amps discussed earlier! This is very exciting. I recommend you buy this excellent HQ-1 and experiment with balanced links instead of the stock cable. The better the power supply balanced leg, the better the performance. You may end up tripling the cost of this baby, but it's more likely you have an unused balanced interconnect in storage which will wield magnificent results like the K-S Emotion did for me!

This gorgeous smallish two box outfit is only $895 and still managed to rock my world. What fun! Very highly recommended. Robert H. Levi

KingRex Technology Co., LTD.
13 F-3, No. 136, Min Quan West Road,
Taipei, Taiwan
TEL: +886-2-2557-2156
FAX: +886-2-8226-2626
email address: service@kingrex.com
web address: http://www.kingrex.com/productimg.aspx?id=14
